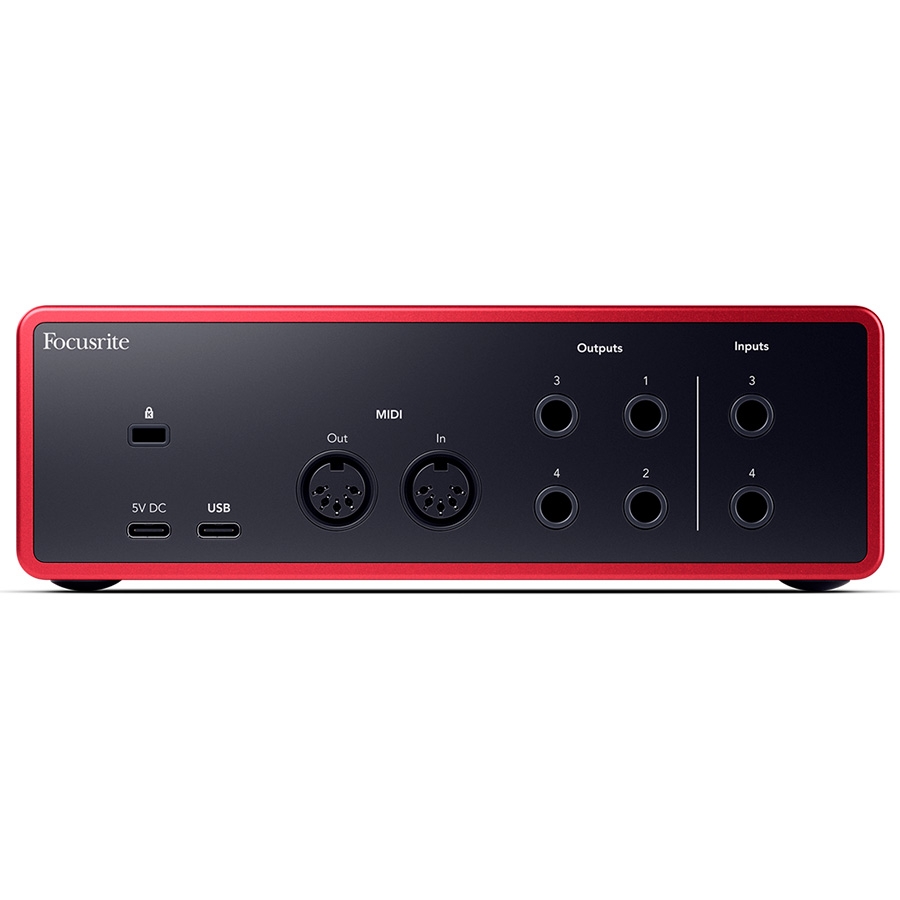

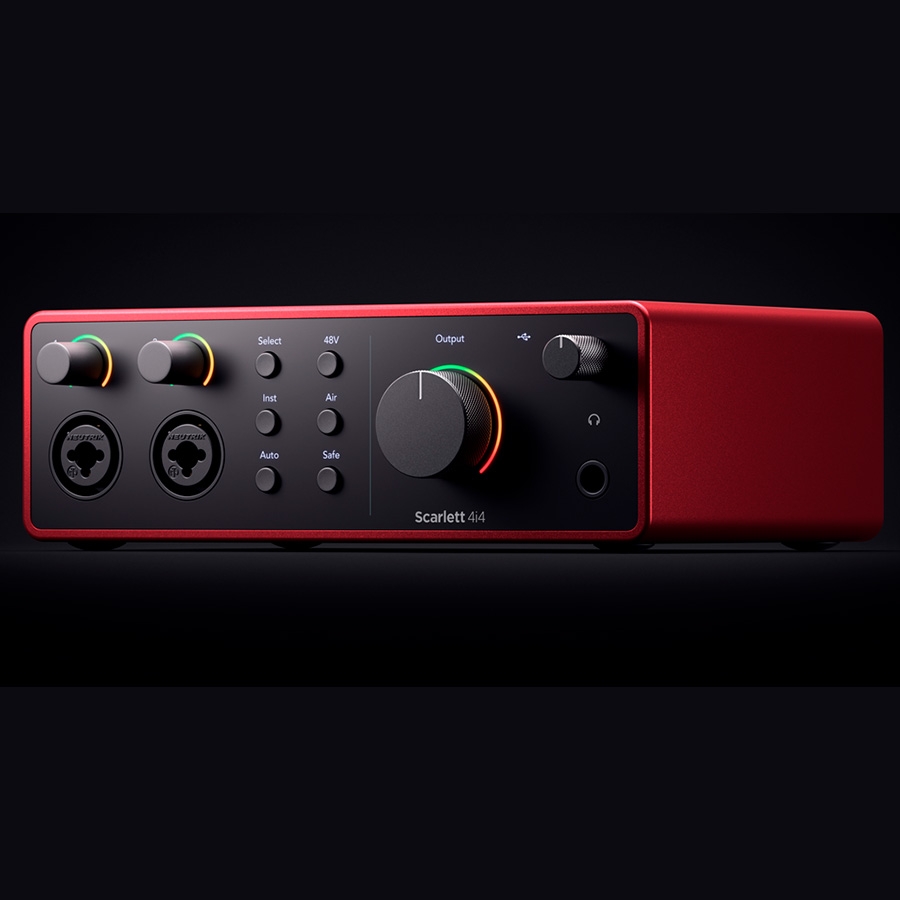

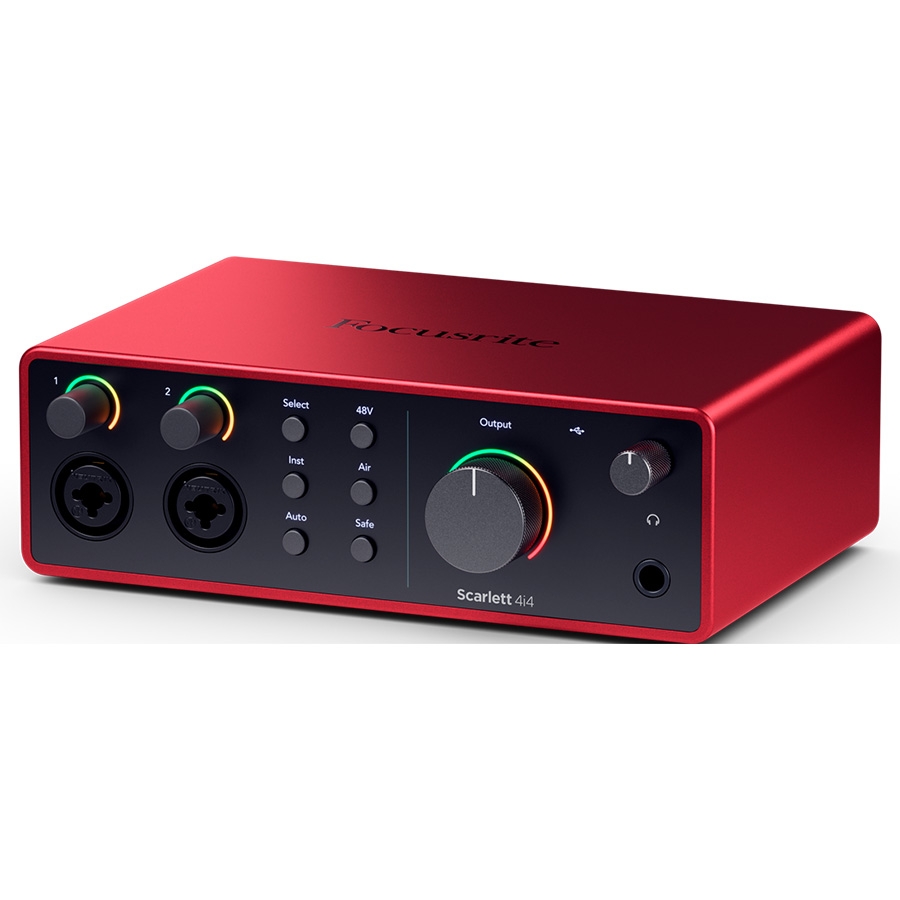

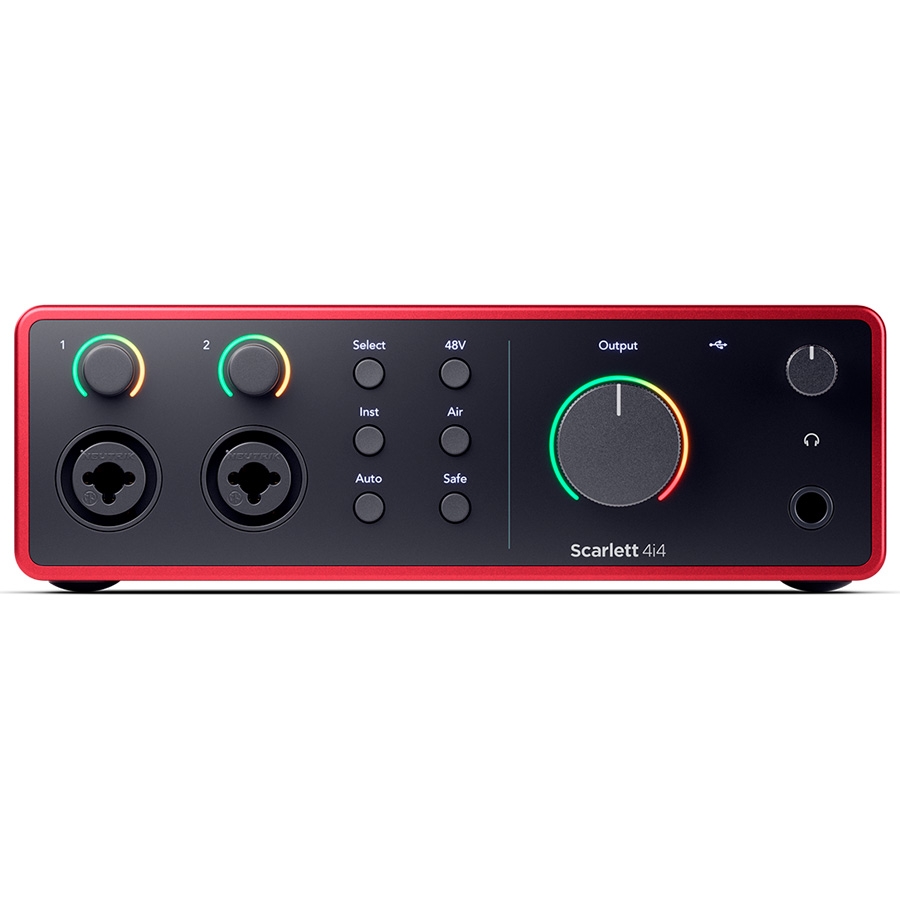

Focusrite Scarlett 4i4 4th Gen Audio Interface
.jpg "Focusrite Scarlett 4i4 4th Gen Audio Interface")
.jpg)
.jpg)
.jpg)
.jpg)
Pluspunkte
Schnelle Lieferung
Installationsservice
Kostenloser Versand ab € 75,-
Onze klanten geven ons een 9.5!
Showroom van 2000m2
- 120+ Jahre Erfahrung
- 2000M2 Showroom
- Ausreichender Kundendienst
- Kunden beurteilen Joh.deHeer 9.5/10
- Bezeichnung
- Spezifikationen
- Mengenrabatt
- Video
- Demonstrationsanfrage
Overview
- Number of Microphone Preamps 2
- Phantom Power Yes
- Instrument Inputs 2
- Line Inputs 4
- Air Mode Yes
- Auto Gain Yes
- Clip Safe Yes
- Line Outputs 4
- Headphone Outputs 1
- Loopback Yes
- MIDI Yes
- Connectivity USB Type-C
- Protocol USB 2.0
- Form Factor Desktop
- Simultaneous I/O6 x 6 (including Loopback inputs)
- A/D Resolution 24-bit/192 kHz
- Bus Powered Yes (1.5A)
Supported sample rates
- 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Microphone inputs
- Frequency Response 20-20kHz ± 0.06dB
- Dynamic Range 116dB (A-Weighted)
- THD+N-100dB @ 8dB gain
- Noise EIN-127dBu (A-Weighted)
- Maximum Input Level 16dBu
- Gain Range 69dB
- Impedance 3kO
Variable Line inputs
- Frequency Response 20-20kHz ± 0.05dB
- Dynamic Range 115.5dB (A-Weighted)
- THD+N-100dB @ 8dB gain
- Maximum Input Level 22dBu
- Gain Range 69dB
- Impedance 60kO
Fixed Line inputs
- Frequency Response 20-20kHz ± 0.02dB
- Dynamic Range 115.5dB (A-Weighted)
- THD+N-105dB
- Maximum Input Level 22dBu
- Impedance 60kO
Instrument inputs
- Frequency Response 20-20kHz ± 0.15dB
- Dynamic Range 113dB (A-Weighted)
- THD+N-80dB @ minimum gain
- Maximum Input Level 12dBu
- Gain Range 62dB
- Impedance 1MO
Line outputs (Balanced)
- Frequency Response 20-20kHz ± 0.02dB
- Dynamic Range 120dB
- THD+N-112dB
- Maximum Output Level 16dBu
- Impedance 100O
Headphone outputs
- Frequency Response 20-20kHz ± 0.1dB @ 33O / 300O
- Dynamic Range 112dB @ 33O
115dB @ 300O - THD+N-99dB @ 33O
-108dB @ 300O - Maximum Output Level 5dBu into 33O
11dBu into 300O - Maximum Output Power 57mW into 33O
27mW into 300O - Impedance 11O
Analogue to Digital Converter
- THD+N-110dB
- Dynamic Range 120dB
Digital to Analogue Converter
- THD+N-115dB
- Dynamic Range 130dB (A-Weighted)
Power
- USB1.5A
- External (Optional)7.5W
Technische Spezifikationen
Anzahl Analoge Eingänge:
4
Anzahl Analoge Ausgänge:
4
Verbindung zu Computer:
/ USB 3.1 (USB-A / USB-C)
MIDI I/O (Din Verbindung):
Keine
Kopfhörerausgang:
Ja
Geeignet für Betriebsystem:
Apple OSX / Mac OS / Microsoft Windows
Maximale Abtastrate:
192 kHz
Phantomspeisung:
Ja
sah und ausprobieren Sie unser Produkt im wirklichen Leben?
Wir möchten Sie in unserem Showroom sehen, wo wir Ihnen alles über dieses Produkt bieten.
- Bezeichnung
- Spezifikationen
- Number of Microphone Preamps 2
- Phantom Power Yes
- Instrument Inputs 2
- Line Inputs 4
- Air Mode Yes
- Auto Gain Yes
- Clip Safe Yes
- Line Outputs 4
- Headphone Outputs 1
- Loopback Yes
- MIDI Yes
- Connectivity USB Type-C
- Protocol USB 2.0
- Form Factor Desktop
- Simultaneous I/O6 x 6 (including Loopback inputs)
- A/D Resolution 24-bit/192 kHz
- Bus Powered Yes (1.5A)
- 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Frequency Response 20-20kHz ± 0.06dB
- Dynamic Range 116dB (A-Weighted)
- THD+N-100dB @ 8dB gain
- Noise EIN-127dBu (A-Weighted)
- Maximum Input Level 16dBu
- Gain Range 69dB
- Impedance 3kO
- Frequency Response 20-20kHz ± 0.05dB
- Dynamic Range 115.5dB (A-Weighted)
- THD+N-100dB @ 8dB gain
- Maximum Input Level 22dBu
- Gain Range 69dB
- Impedance 60kO
- Frequency Response 20-20kHz ± 0.02dB
- Dynamic Range 115.5dB (A-Weighted)
- THD+N-105dB
- Maximum Input Level 22dBu
- Impedance 60kO
- Frequency Response 20-20kHz ± 0.15dB
- Dynamic Range 113dB (A-Weighted)
- THD+N-80dB @ minimum gain
- Maximum Input Level 12dBu
- Gain Range 62dB
- Impedance 1MO
- Frequency Response 20-20kHz ± 0.02dB
- Dynamic Range 120dB
- THD+N-112dB
- Maximum Output Level 16dBu
- Impedance 100O
- Frequency Response 20-20kHz ± 0.1dB @ 33O / 300O
- Dynamic Range 112dB @ 33O
115dB @ 300O - THD+N-99dB @ 33O
-108dB @ 300O - Maximum Output Level 5dBu into 33O
11dBu into 300O - Maximum Output Power 57mW into 33O
27mW into 300O - Impedance 11O
- THD+N-110dB
- Dynamic Range 120dB
- THD+N-115dB
- Dynamic Range 130dB (A-Weighted)
- USB1.5A
- External (Optional)7.5W
- Mengenrabatt
- Video
- Demonstrationsanfrage
Technische Spezifikationen
Anzahl Analoge Eingänge:
4
Anzahl Analoge Ausgänge:
4
Verbindung zu Computer:
/ USB 3.1 (USB-A / USB-C)
MIDI I/O (Din Verbindung):
Keine
Kopfhörerausgang:
Ja
Geeignet für Betriebsystem:
Apple OSX / Mac OS / Microsoft Windows
Maximale Abtastrate:
192 kHz
Phantomspeisung:
Ja
Overview
Supported sample rates
Microphone inputs
Variable Line inputs
Fixed Line inputs
Instrument inputs
Line outputs (Balanced)
Headphone outputs
Analogue to Digital Converter
Digital to Analogue Converter
Power
sah und ausprobieren Sie unser Produkt im wirklichen Leben?
Wir möchten Sie in unserem Showroom sehen, wo wir Ihnen alles über dieses Produkt bieten.
