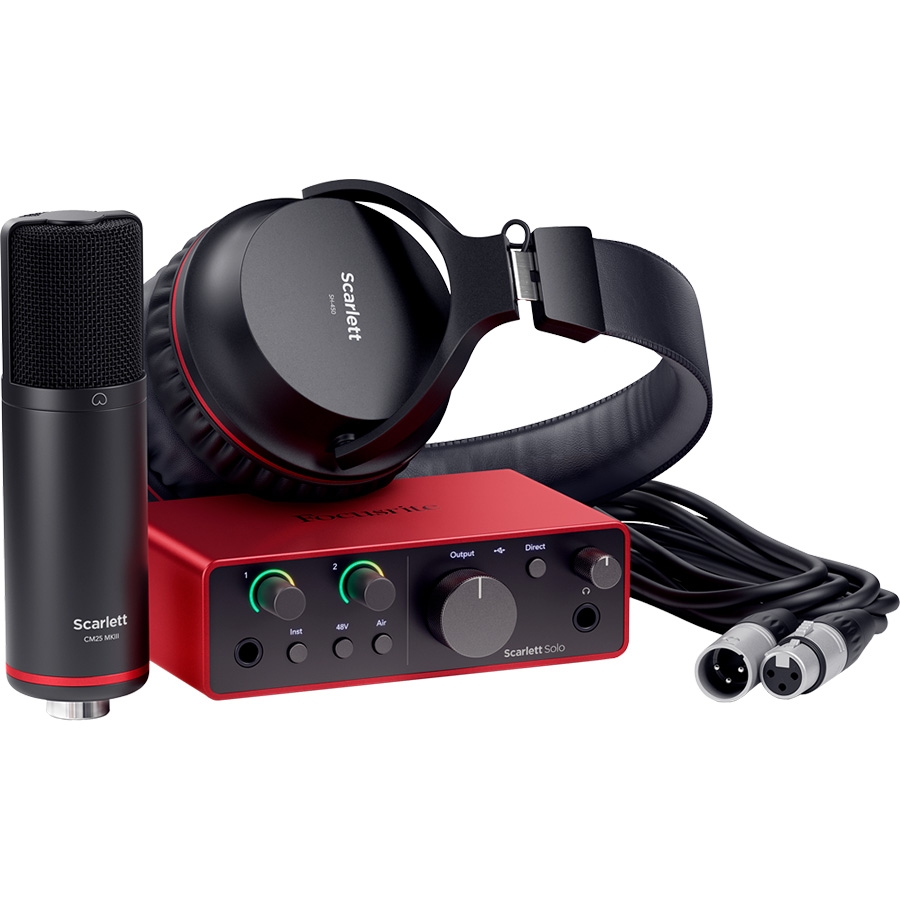

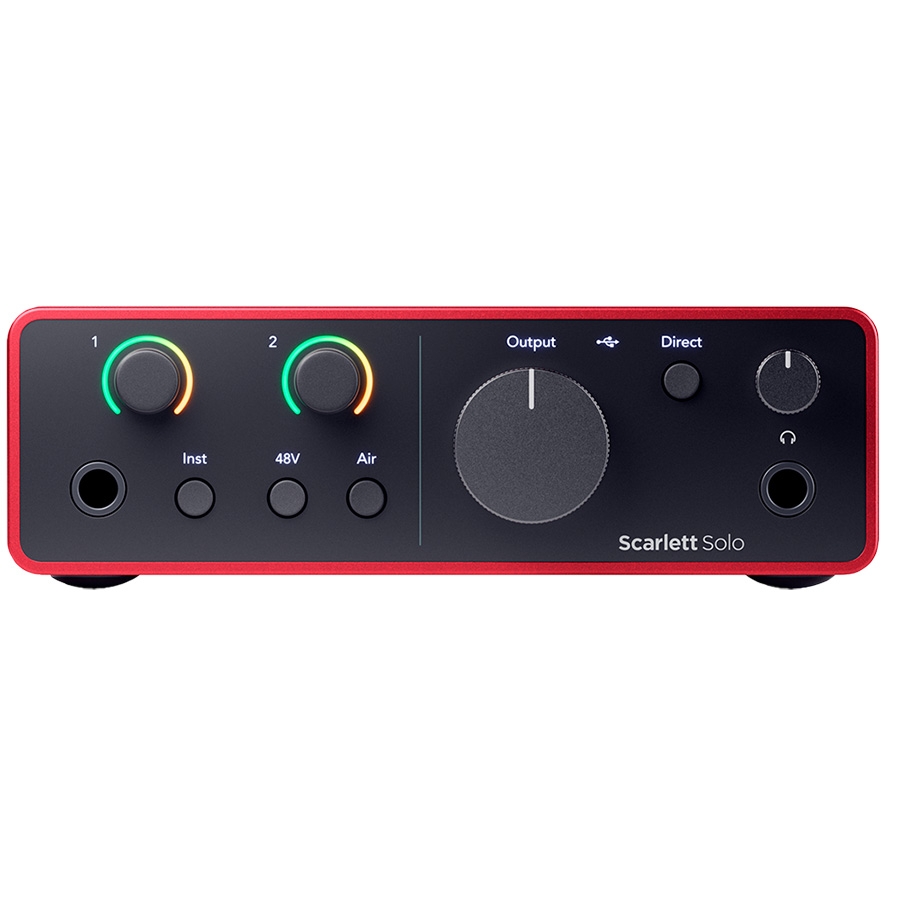

Focusrite Scarlett Solo Studio Bundle 4th Gen Audio Interface
.jpg "Focusrite Scarlett Solo Studio Bundle 4th Gen Audio Interface")
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Why Joh.deHeer?
Free shipping on orders above € 75,-
Onze klanten geven ons een 9.5!
Showroom van 2000m2
- 120+ Years of experience
- 2000M2 Showroom
- Effective Customer Service
- Customers rate Joh.deHeer 9.5/10
- Description
- Specifications
- Graduated calculations
- Video
- Demonstration request
Overview
- Number of Microphone Preamps1
- Phantom PowerYes
- Instrument Inputs1
- Line Inputs1
- Air ModeYes
- Line Outputs2
- Headphone Outputs1
- LoopbackYes
- ConnectivityUSB Type-C
- ProtocolUSB 2.0
- Form FactorDesktop
- Simultaneous I/O4 x 2 (including Loopback inputs)
- A/D Resolution24-bit/192 kHz
- Bus PoweredYes (900mA)
Supported sample rates
- 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Microphone inputs
- Frequency Response20-20kHz ± 0.06dB
- Dynamic Range113dB (A-Weighted)
- THD+N-100dB @ minimum gain
- Noise EIN-127dBu (A-Weighted)
- Maximum Input Level9.5dBu
- Gain Range57dB
- Impedance3kO
Line inputs
- Frequency Response20-20kHz ± 0.05dB
- Dynamic Range113dB (A-Weighted)
- THD+N-100dB @ minimum gain
- Maximum Input Level22dBu
- Gain Range57dB
- Impedance60kO
Instrument inputs
- Frequency Response20-20kHz ± 0.15dB
- Dynamic Range112dB (A-Weighted)
- THD+N-80dB @ minimum gain
- Maximum Input Level12dBu
- Gain Range57dB
- Impedance1MO
Line outputs (Balanced)
- Frequency Response20-20kHz ± 0.02dB
- Dynamic Range120dB
- THD+N-109dB
- Maximum Output Level16dBu
- Impedance200O
Headphone outputs
- Frequency Response20-20kHz ± 0.1dB @ 33O / 300O
- Dynamic Range112dB @ 33O
115dB @ 300O - THD+N-97dB @ 33O
-102dB @ 300O - Maximum Output Level2.5dBu into 33O
10dBu into 300O - Maximum Output Power32mW into 33O
22mW into 300O - Impedance50O
Analogue to Digital Converter
- THD+N-110dB
- Dynamic Range120dB
Digital to Analogue Converter
- THD+N-115dB
- Dynamic Range130dB (A-Weighted)
Power
- USB900mA
Technical specifications
Number of Analog Inputs:
1
Number of Analog Outputs:
2
Input(s) with Hi-Z:
Yes
Connection to Computer:
USB 3.1 (USB-A / USB-C)
Headphone Output:
Yes
Suitable for Operating System:
Apple OSX / Mac OS / Microsoft Windows
Maximum Sample Rate:
192 kHz
Phantom Power:
Yes
